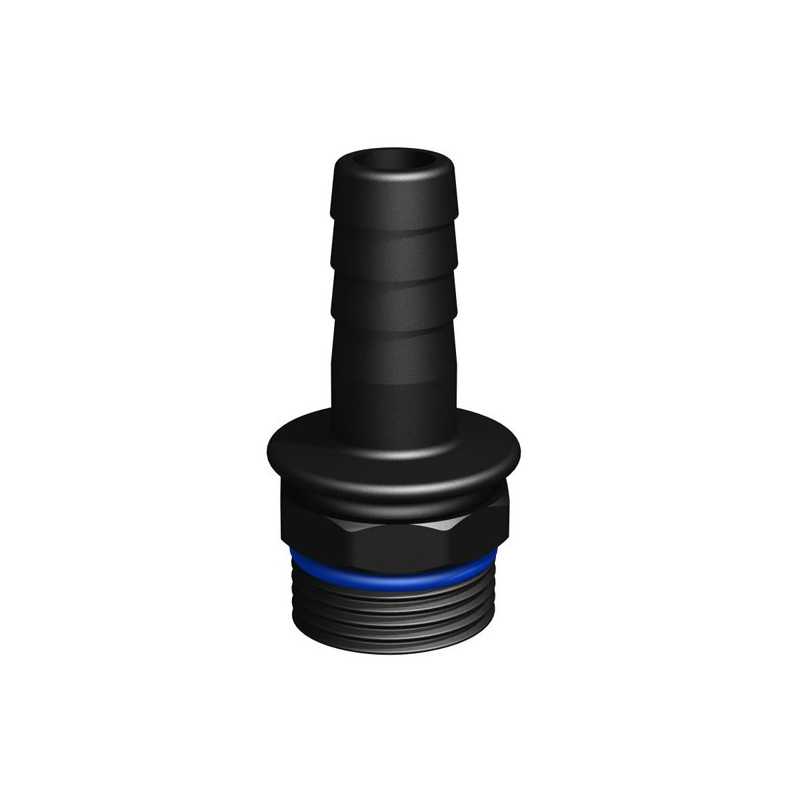

Male fitting 1'' BSP - straight barbed Ø19mm

Male Threaded Fitting 1'' BSP - Straight Barbed Ø19mm CPP (Reference: 101079)

This professional CPP male fitting offers a reliable connection solution for connecting flexible hoses to 1-inch BSP threaded installations. Designed in polypropylene reinforced with 30% glass fiber, it guarantees high rigidity and exceptional lifespan in the most demanding environments.

Applications and Fields of Use

This straight barbed fitting finds its place in numerous professional and domestic applications. In industrial environments, it ensures the connection of water supply hoses, cooling circuits or transfer of non-aggressive fluids. Agricultural operations use it for their irrigation, spraying or livestock watering systems.

For individuals and landscapers, this fitting proves indispensable in automatic watering installations, rainwater recovery systems or fountain and pond circuits. Its compatibility with 1'' BSP threading makes it universal on most European equipment: valves, pumps, tanks and watering accessories.

Construction professionals appreciate it for temporary connections on construction sites, high-pressure cleaning systems or air conditioning installations. Its barbed design ensures secure fixation of flexible hose without requiring specialized tools.

Material and Technical Specifications

Manufactured in polypropylene filled with 30% glass fiber, this CPP fitting presents mechanical characteristics superior to standard polypropylene. This composition provides high rigidity, excellent resistance to thermal shock and remarkable durability against UV and oxidation.

The 1'' BSP male thread (British Standard Pipe) complies with ISO 228-1 standard, guaranteeing perfect compatibility with all European equipment. The thread pitch of 11 threads per inch ensures progressive tightening and optimal sealing with appropriate gaskets.

The barbed part with 19mm diameter is dimensioned to receive standard market flexible hoses. The spiral barbs allow easy insertion while maintaining maximum hose adhesion. The smooth finish of the fitting facilitates cleaning and prevents residue accumulation.

This material withstands temperatures from -20°C to +80°C in continuous service, with allowable peaks up to +100°C for short durations. It presents excellent chemical compatibility with drinking water, liquid fertilizers, diluted plant protection products and most non-aggressive fluids.

Installation and Implementation

Installing this barbed fitting requires no specialized tools. For BSP threading, use a flat rubber gasket or an adapted sealing ring according to the type of female connection. Optionally apply Teflon or sealing paste on the threads to guarantee perfect sealing.

Manual tightening generally suffices, completed with a quarter turn with a wrench if necessary. Avoid over-tightening which could damage the threads or deform the sealing gasket. Respect a maximum tightening torque of 25 Nm to preserve fitting integrity.

To fix the flexible hose, slightly warm the hose end in warm water to facilitate insertion on the barbs. Push the hose until the provided stop, then tighten an appropriate diameter clamp. Check sealing before final pressurization.

In case of seasonal dismounting, carefully clean the threads and barbs. Store the fitting away from frost and direct sunlight to preserve its mechanical properties. Periodic rinsing maintains sealing performance in agricultural or industrial applications.

Expert Advice and Complementary Products

To optimize this fitting's performance, combine it with the right accessories. Stainless steel clamps or compression rings guarantee durable fixation of flexible hose. Prefer reinforced hoses for applications under pressure or exposed to significant thermal variations.

In watering systems, combine this fitting with our Gardena programmers and our electric valves to create an automated installation. For industrial applications, our complementary Camlock fittings allow quick connections/disconnections without product loss.

Avoid common errors: never force insertion of a cold hose on the barbs, this could damage them. Do not use grease or oil on BSP threads, these products can degrade rubber gasket sealing. Respect the maximum service pressure indicated according to operating temperature.

For temporary installations, our Express compression fittings offer an alternative without clamps. In agricultural environments, consider our filters and strainers to protect your equipment from impurities. Professionals will appreciate our complete connection kits including gaskets, Teflon and matching clamps.

Technical Characteristics
