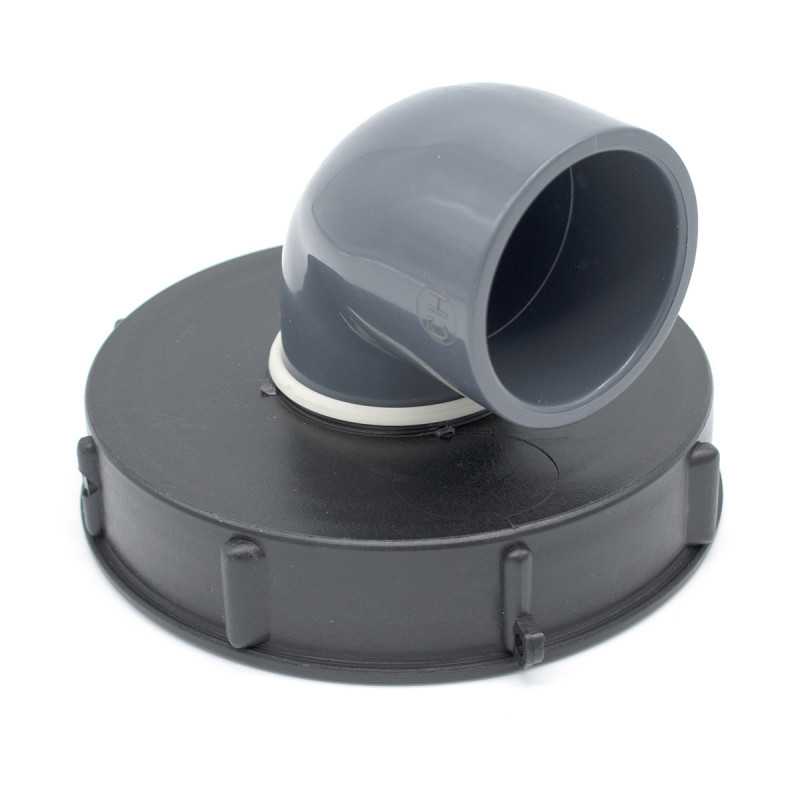

15cm Lid with 90° PVC Elbow for 1000 Liter IBC Tank

15cm Lid with 90° PVC Elbow for 1000 Liter IBC Tank (Reference: 101501) represents the optimal technical solution to transform your IBC tank into a high-performance rainwater harvesting system. This professional lid, designed by Multitanks, combines robustness, waterproofing and ease of installation to meet the requirements of individuals and professionals concerned with sustainable water management.

Applications and Benefits

This lid with integrated elbow primarily targets homeowners wishing to harvest rainwater via their gutter systems. The 90° orientation of the PVC elbow allows direct and natural connection of the downspout, avoiding additional elbows and potential leak points. Eco-responsible gardeners particularly appreciate this solution for creating free water reserves for watering their green spaces, greenhouses or vegetable gardens.

Construction professionals and agricultural operations also use this lid to create rainwater collection points for equipment cleaning, irrigation system supply or technical water reserves. The 1000-liter capacity of the IBC tank ensures significant autonomy, particularly appreciated during water restriction periods or to reduce water bills.

Technical Specifications and Design

The lid is manufactured from high-density polyethylene (HDPE), a material recognized for its UV resistance, thermal variations and mechanical stress. This composition guarantees optimal longevity in outdoor conditions, without discoloration or embrittlement after several years of exposure. The 15cm diameter perfectly matches standard IBC 1000-liter tank openings, ensuring precise fit and reliable waterproofing.

The integrated 90° PVC elbow features a diameter suitable for common downspouts (80 to 100mm). Its rigid PVC design resists water pressure and deformation, even during intense precipitation. The 90° angle allows smooth water evacuation without creating stagnation zones or turbulence that could cause swirls in the tank.

Universal compatibility with standard IBC tanks makes this lid a versatile solution, regardless of the original tank manufacturer. Dimensions and thread pitch comply with industrial standards, guaranteeing assembly without special adaptation.

Installation and Implementation

Installing this lid requires no specific tools or particular technical skills. Simply unscrew the original IBC tank lid and position the new lid with elbow respecting the desired orientation for gutter connection. Standard threading ensures effective manual tightening, completed if necessary with a strap wrench to optimize waterproofing.

For downspout connection, position the tank in immediate proximity to the collection point and adjust height to obtain optimal gravity flow. A flexible or rigid pipe section can be inserted between the downspout and elbow to facilitate alignment and absorb potential expansion stresses.

Preventive maintenance consists of periodically checking for obstructions in the elbow (leaves, debris) and monitoring the condition of sealing joints. Semi-annual cleaning with clear water is sufficient to maintain hydraulic performance and system cleanliness.

Expert Advice and Optimizations

To maximize your harvesting system efficiency, consider installing a leaf filter upstream of the lid to prevent organic debris accumulation in the tank. Multitanks S60x6 fittings allow equipping the tank with draw-off valves, transforming your installation into a true water distribution station.

Gardening professionals recommend completing the installation with a submersible or surface pump to automate water distribution to distant watering zones. Gardena irrigation timers available from Multitanks integrate perfectly with this type of installation to create an autonomous irrigation system.

In winter periods, ensure partial tank drainage to prevent ice expansion that could damage fittings. Adding a drain valve at the bottom of the tank facilitates this seasonal operation.

For permanent installations, using a tank base improves overall stability and facilitates bottom piping connections. This elevation also optimizes outlet pressure through gravity effect, improving flow rate available for watering.
