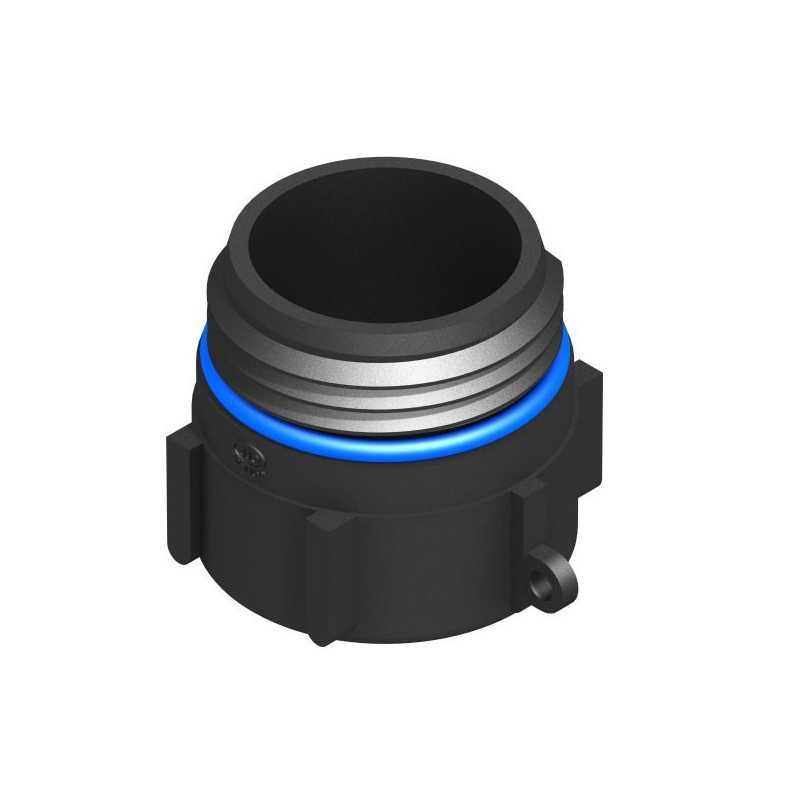

Male S64x5 - Female 2'' BSP Adapter

CPP Male S64x5 - Female 2'' BSP Adapter (Reference: 100250): the essential technical solution to ensure compatibility between European S64x5 threads and British BSP standards. This professional polypropylene adapter meets the strictest requirements of industrial, agricultural and fluid handling installations.

Professional applications and usage domains

This S64x5 to BSP 2'' adapter finds its place in numerous activity sectors. In the chemical and food processing industry, it allows connecting tanks and reservoirs equipped with S64x5 threads to pumping and distribution systems using BSP 2-inch fittings. Agricultural operations use it to connect their storage tanks for liquid fertilizers, phytosanitary products or water to spreading and irrigation equipment.

Gas stations and petroleum depots appreciate its resistance to hydrocarbons for fuel transfers. In the construction sector, it facilitates connections of site equipment requiring adaptation between these two threading standards. Its versatility also makes it a key element in wastewater treatment installations and rainwater recovery systems.

Technical design and quality materials

Manufactured in high-density polypropylene, this CPP adapter offers exceptional resistance to chemical agents, UV rays and temperature variations. Polypropylene has the advantage of being inert towards most common chemicals, which guarantees the integrity of transported fluids and the durability of the installation.

The male S64x5 thread scrupulously respects the European standard with a 5 mm pitch, ensuring precise threading and optimal sealing. On the BSP side, the female 2-inch thread follows the British standard with an 11 threads per inch (TPI) pitch, guaranteeing perfect compatibility with all BSP-certified equipment.

The optimized internal geometry minimizes pressure losses while maintaining constant flow. The studied connection radii avoid turbulence zones and reduce premature wear of sealing gaskets.

Installation and practical usage tips

Installing this adapter requires no specialized tools. Firm hand tightening followed by a quarter turn with a wrench is generally sufficient to achieve perfect sealing. It is recommended to use a flat gasket or O-ring suitable for the transported fluid to guarantee sealing on the BSP side.

Before first use, check the cleanliness of threads and eliminate any traces of chips or dust. Applying a compatible sealing product (paste or teflon) on the male thread improves sealing, particularly for pressurized fluids.

For permanent installations, periodically check tightening, especially after the first pressurization cycles. When using with aggressive chemicals, respect the maximum contact times recommended for polypropylene and replace the adapter at the first signs of wear or deformation.

Technical specifications
